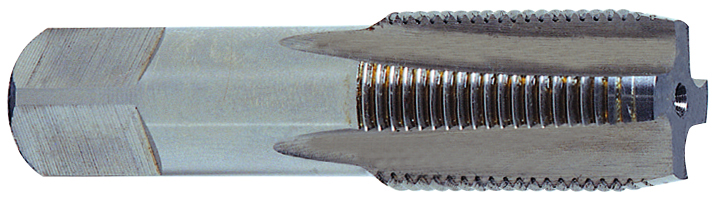

YG-1 S0560 1/2-14.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Nitride + Steam Oxide

Part Number: YG-S0560

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164279
$74.67
YG-1 S0560 1/2"x14.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Nitride + Steam Oxide PIPE NPT/NPTF/ANPT Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Coating Nitride + Steam Oxide
Overall Length 3.1250 79.38MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 14.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction STRAIGHT
Thread Size 1/2"
Thread Limit PIPE
Tap Style Pipe Straight Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 17.8500 453.39MM
Tap Square 0.5150
Tap Chamfer 2.0P-3.0P
