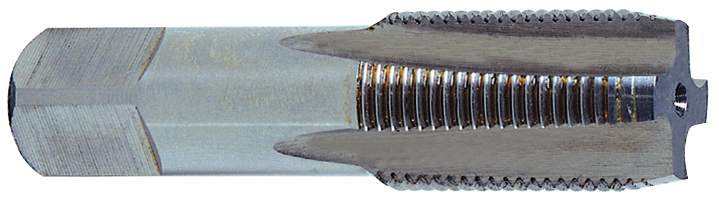

Picture of YG-1 R8D20 2-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 TiN

YG-1 R8D20 2-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 TiN

Part Number: YG-R8D20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164262
Vendor: Sussex Tool and Supply
$529.19
Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.
Products specifications
Attribute name Attribute value
Tap Drill Range 2.1874 55.56MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 1.8750 47.63MM - 1-7/8
Thread Limit PIPE
Cutter Type Taping
Tap Square 1.4060
Length Type STANDARD
Performance Rating General Performance
Tap Style Pipe Straight Flute
Overall Length 4.2500 107.95MM
Machine Side (Toolpost) TAP1.406x1.875
Cutting Edge Definition which increase wear resistance and hot hardness., Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 7
Shipping State ILLINOIS
Family Group Pipe Taps
Cutting Edge Material HSSE-V3
Tool Material Steel
Coating TIN
Coolant Thru Non Coolant
Tap Type Pipe
Flute Direction Straight
Thread Type NPT/NPTF/ANPT
Made In USA No
Thread Size 2"
Thread Pitch 11.50TPI
Tap Chamfer 2.0P-3.0P
