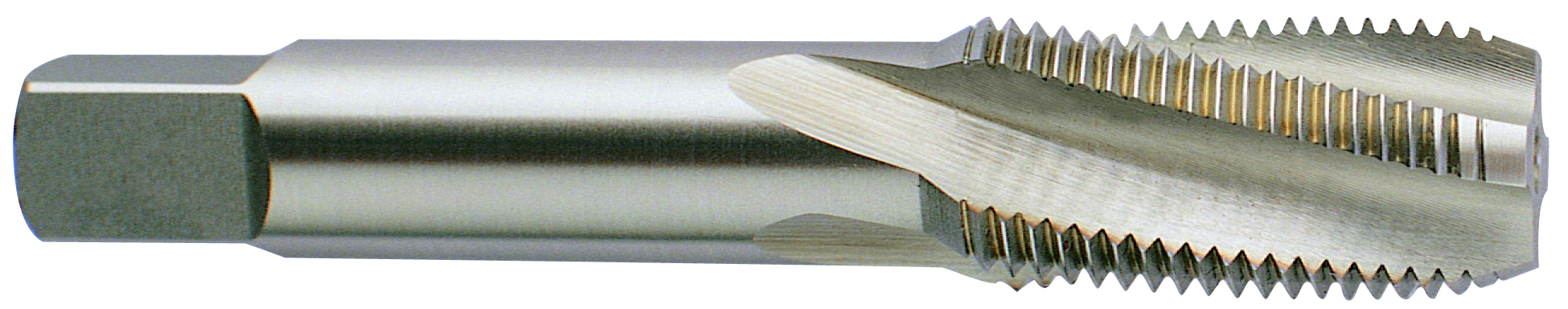

Picture of YG-1 Q0D20 2-11.50TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE-V3 Steam Oxide

YG-1 Q0D20 2-11.50TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE-V3 Steam Oxide

Part Number: YG-Q0D20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164160
Vendor: Sussex Tool and Supply
$309.53
YG-1 Q0D20 2"x11.50TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE-V3 Steam Oxide PIPE NPT/NPTF/ANPT Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Coating Steam Oxide
Overall Length 4.2500 107.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.8750 47.63MM - 1-7/8
Flutes/Inserts 7
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 11.50TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 2"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 2.1874 55.56MM
Tap Square 1.4060
Tap Chamfer 2.0P-3.0P
