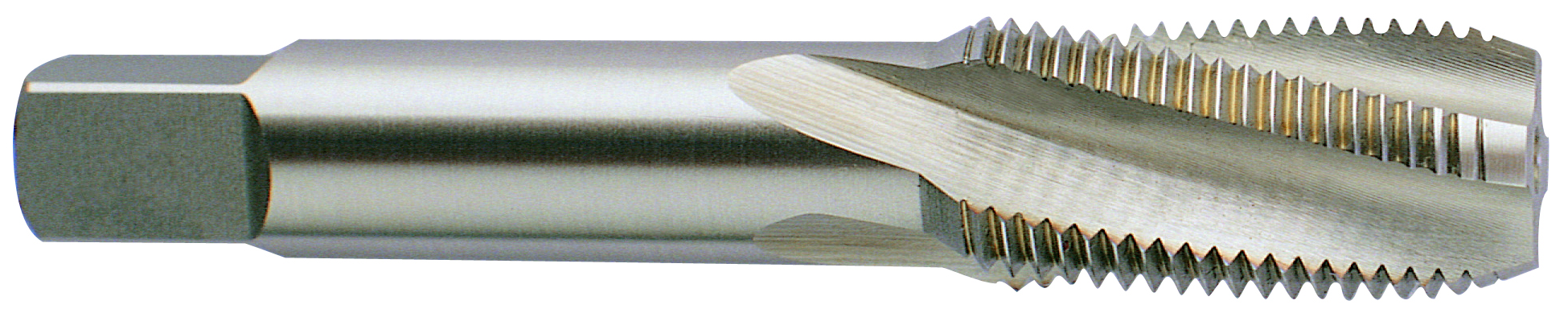

Picture of YG-1 Q0700 3/4-14.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE-V3 Steam Oxide

YG-1 Q0700 3/4-14.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE-V3 Steam Oxide

Part Number: YG-Q0700

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164156
Vendor: Sussex Tool and Supply
$77.08
YG-1 Q0700 3/4"x14.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE-V3 Steam Oxide PIPE NPT/NPTF/ANPT Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Coating Steam Oxide
Overall Length 3.2500 82.55MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 14.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.9059 23.01MM
Tap Square 0.6790
Tap Chamfer 2.0P-3.0P
