  • YG-1 P16506 SERIES 5 STRAIGHT Shank & STRAIGHT Flute EXTENDED Length SPADE Drill HOLDER

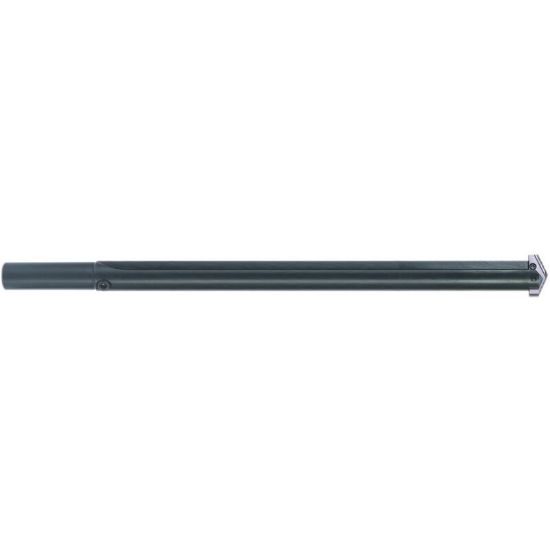

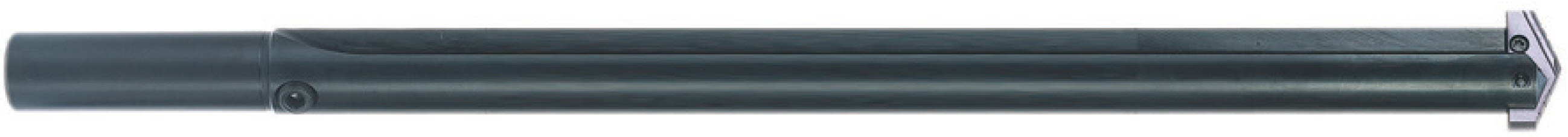

Picture of YG-1 P16506 SERIES 5 STRAIGHT Shank & STRAIGHT Flute EXTENDED Length SPADE Drill HOLDER

YG-1 P16506 SERIES 5 STRAIGHT Shank & STRAIGHT Flute EXTENDED Length SPADE Drill HOLDER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P16506
Delivery date: 3-5 days
$948.80
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Spade Drills
Application Spade Drilling, Drilling, Single Insert Drilling
Package Size 1
Shipping State Illinois
Additional Key Information 2 Spade Body
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 2.0000 50.80MM
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 2
Cut Dia Min 2.5000 63.50MM - 2-1/2
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side BBAR2.0000,WELDON2.0000
Tool Material Steel
Cut Dia Max 3.5000 88.90MM - 3-1/2
Overall Len 24.0000 609.60MM
Flute Length 18.2500 463.55MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
