  • YG-1 P15506 SERIES 5 STRAIGHT Shank & STRAIGHT Flute STANDARD Length SPADE Drill HOLDER

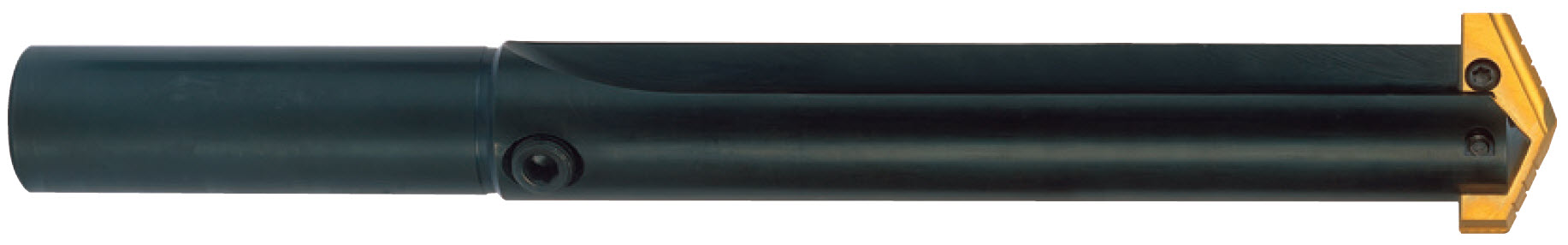

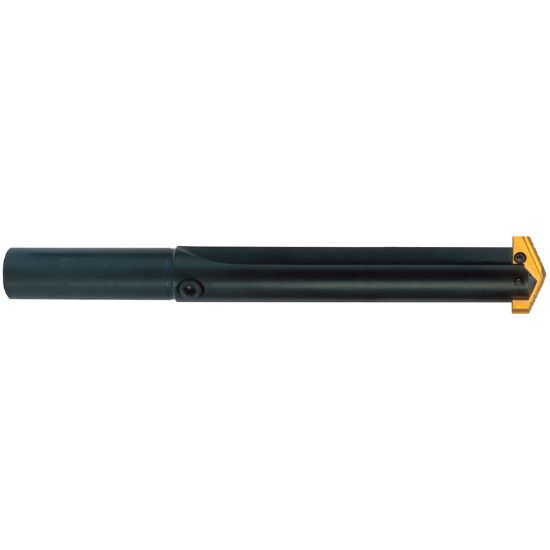

Picture of YG-1 P15506 SERIES 5 STRAIGHT Shank & STRAIGHT Flute STANDARD Length SPADE Drill HOLDER

YG-1 P15506 SERIES 5 STRAIGHT Shank & STRAIGHT Flute STANDARD Length SPADE Drill HOLDER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P15506
Delivery date: 3-5 days
$664.40
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling, Spade Drilling
Additional Key Information 1 Spade Drills
Additional Key Information 2 Spade Body
Shipping State Illinois
Sold by Pieces 1
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Flute Length 10.7500 273.05MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side BBAR2.0000,WELDON2.0000
Tool Material Steel
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 2.0000 50.80MM
Cut Dia Max 3.5000 88.90MM - 3-1/2
Overall Len 16.5000 419.10MM
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Multi Spindle Yes
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
