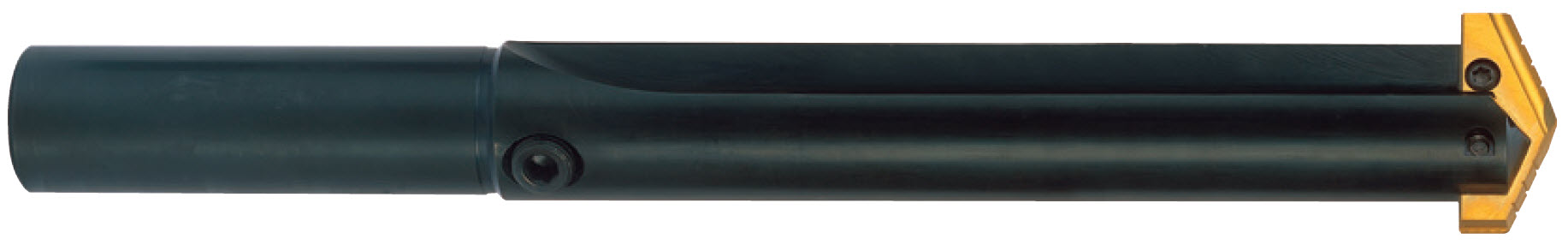

Picture of YG-1 P15303 Series 3 Straight Shank & Straight Flute Standard Length Spade Drill Holder

YG-1 P15303 Series 3 Straight Shank & Straight Flute Standard Length Spade Drill Holder

Part Number: YG1P15303

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1149147
Vendor: Sussex Tool and Supply
$351.05
Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.2500 31.75MM - 1-1/4
Cutter Type Spade Body
Overall Length 13.5000 342.90MM
Multi Spindle Yes
Machine Side (Toolpost) WELDON1.2500, BBAR1.2500
Cutting Edge Definition including cutting tools, Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, dies, and others., knives, hand tools
Type of Tool Drill
Machine Side (Toolpost) Connection Type Weldon, Boring Bar
Flutes Or Inserts 2
Shipping State ILLINOIS
Family Group YG Spade
Tool Material Steel
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Tool Diameter 1.4062 35.72MM - 1-13/32
Cut Diameter Min 1.4062 35.72MM - 1-13/32
Coolant Thru Thru Coolant
Cut Diameter Max 1.8750 47.63MM - 1-7/8
Made In USA No
Flute Length 8.2500 209.55MM
