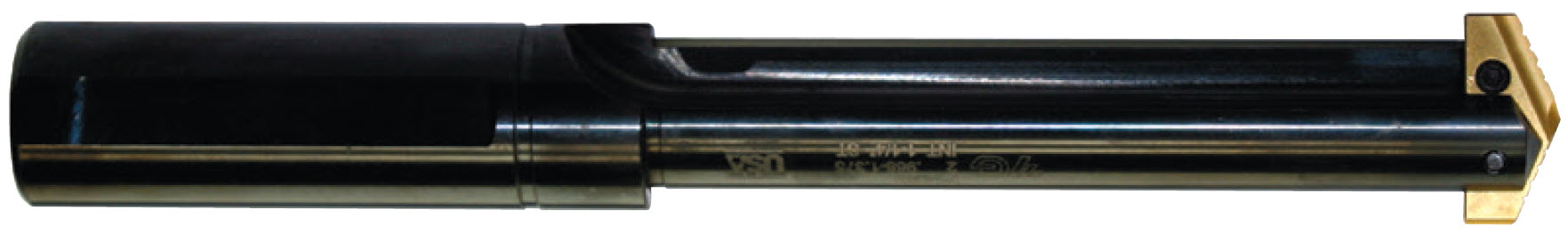

YG-1 P14304 SERIES 3 STRAIGHT Shank & STRAIGHT Flute MEDIUM Length SPADE Drill HOLDER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P14304
Delivery date: 3-5 days
$396.64
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Spade Body
Application Single Insert Drilling, Drilling, Spade Drilling
Shipping State Illinois
Package Size 1
Sold by Pieces 1
Additional Key Information 1 Spade Drills
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.0313 26.20MM
Flutes/Inserts 2
Cut Dia Min 1.4062 35.72MM - 1-13/32
Shank/Pilot Dia 1.0313 26.20MM - 1-1/32
Tool Material Steel
Flute Length 6.5000 165.10MM
Cutter Dia 1.4062 35.72MM - 1-13/32
Machine Side BBAR1.0313,WELDON1.0313
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Max 1.8750 47.63MM
Overall Len 11.7500 298.45MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Aerospace Yes
Mold Yes
Multi Spindle Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
