  • YG-1 P13708 SERIES 7 STRAIGHT Shank & STRAIGHT Flute SHORT Length SPADE Drill HOLDER

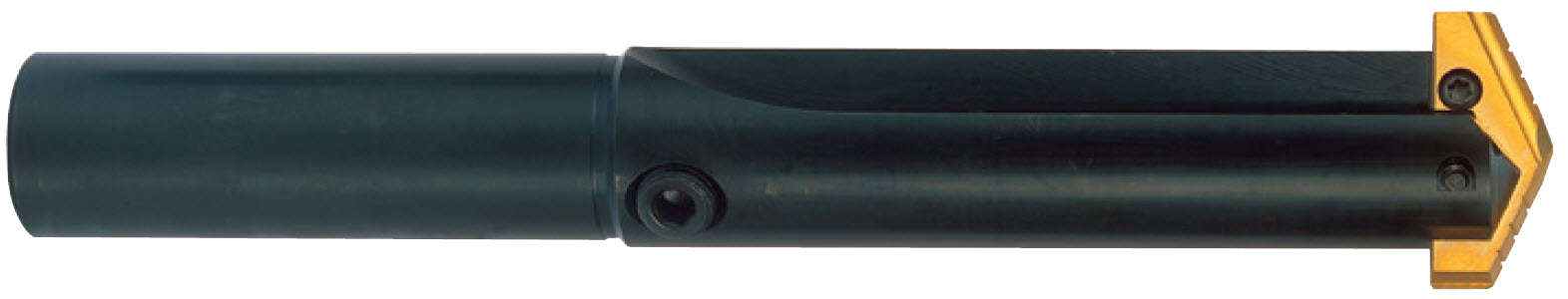

Picture of YG-1 P13708 SERIES 7 STRAIGHT Shank & STRAIGHT Flute SHORT Length SPADE Drill HOLDER

YG-1 P13708 SERIES 7 STRAIGHT Shank & STRAIGHT Flute SHORT Length SPADE Drill HOLDER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P13708
Delivery date: 3-5 days
$792.92
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Spade Body
Application Single Insert Drilling, Spade Drilling, Drilling
Package Size 1
Sold by Pieces 1
Additional Key Information 1 Spade Drills
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 2
Cut Dia Min 3.5313 89.70MM - 3-17/32
Machine Side BBAR3.0000,WELDON3.0000
Machine Side Connection Size 3.0000 76.20MM
Cut Dia Max 4.5000 114.30MM - 4-1/2
Cutter Dia 3.5313 89.70MM - 3-17/32
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 3.0000 76.20MM - 3
Flute Length 6.7500 171.45MM
Overall Len 13.8750 352.43MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
Multi Spindle Yes
