  • YG-1 P13405 SERIES 4 STRAIGHT Shank & STRAIGHT Flute SHORT Length SPADE Drill HOLDER

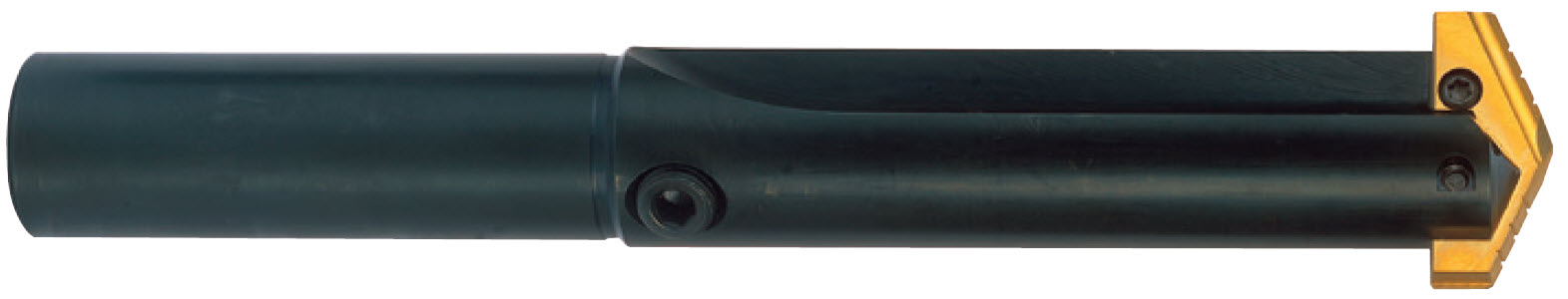

Picture of YG-1 P13405 SERIES 4 STRAIGHT Shank & STRAIGHT Flute SHORT Length SPADE Drill HOLDER

YG-1 P13405 SERIES 4 STRAIGHT Shank & STRAIGHT Flute SHORT Length SPADE Drill HOLDER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P13405
Delivery date: 3-5 days
$402.62
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Spade Drills
Application Spade Drilling, Drilling, Single Insert Drilling
Package Size 1
Shipping State Illinois
Additional Key Information 2 Spade Body
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Cut Dia Max 2.5625 65.09MM - 2-9/16
Flutes/Inserts 2
Cutter Dia 1.9063 48.42MM - 1-29/32
Machine Side BBAR0.7500,WELDON0.7500
Flute Length 5.1250 130.18MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Cut Dia Min 1.9062 48.42MM - 1-29/32
Machine Side Connection Size 0.7500 19.05MM
Overall Len 10.5000 266.70MM
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Multi Spindle Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
