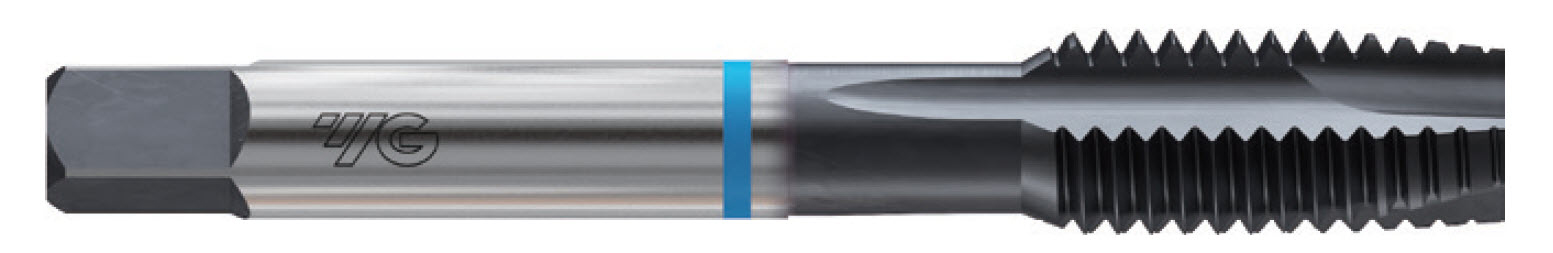

Picture of YG-1 N7284 M5-0.80mm Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide

YG-1 N7284 M5-0.80mm Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide

Part Number: YG-N7284

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1163984
Vendor: Sussex Tool and Supply
$14.79
YG-1 N7284 M5x0.80MM Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide D4 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat Super HSS
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating Steam Oxide
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.80MM
Thread Type METRIC
Thread Size M5
Thread Limit D4
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1520
Tap Chamfer 4P-5P
