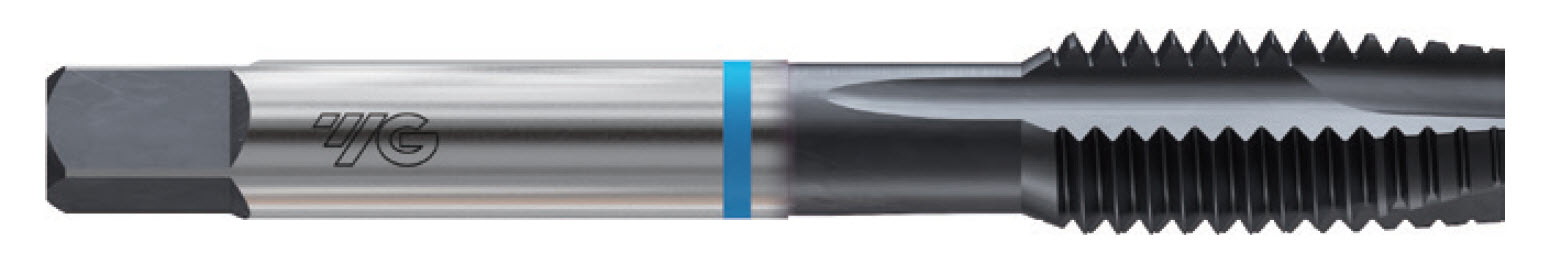

Picture of YG-1 N7203 M3-0.50mm Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide

YG-1 N7203 M3-0.50mm Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide

Part Number: YG-N7203
Looking for alternatives…
Find a drill for this tap M3 × 0.50MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1163981
Vendor: Sussex Tool and Supply
$20.37

Description

YG-1 N7203 M3x0.50MM Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide D3 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 1.9370 49.20MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Thread Pitch 0.50MM
Thread Size M3
Tap Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D3
Materials & Finish
Tool Material Steel
Cutting Edge Mat Super HSS
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
