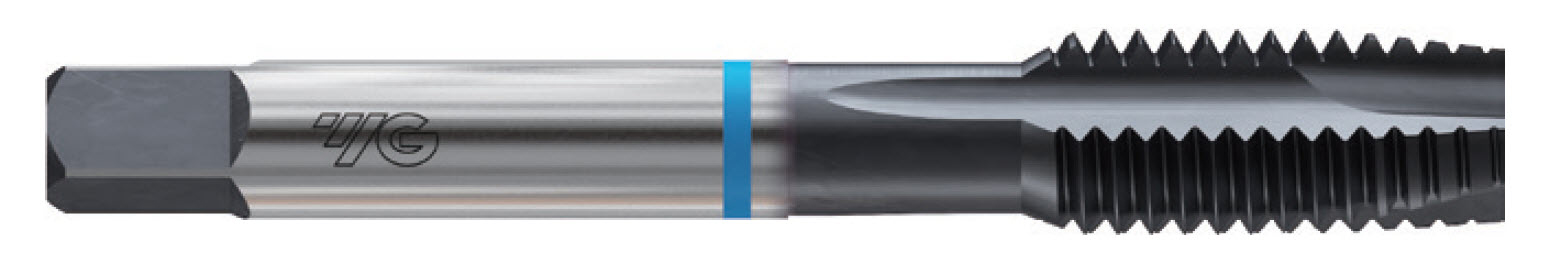

Picture of YG-1 M9082 No.2-56.00TPI Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide

YG-1 M9082 No.2-56.00TPI Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide

Part Number: YG-M9082

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1163867
Vendor: Sussex Tool and Supply
$41.35
YG-1 M9082 No.2x56.00TPI Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat Super HSS
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating Steam Oxide
Overall Length 1.7500 44.45MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 56.00TPI
Thread Type NC/UNC
Thread Size No.2
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Tap Square 0.1100
Tap Chamfer 4P-5P
