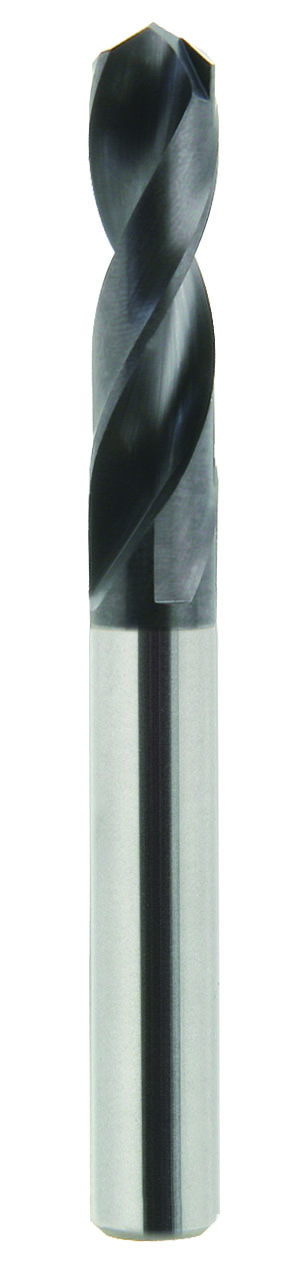

Picture of YG-1 M1700Q Q HSS-Powder Metal MULTI-1 Drill Stub Length TIALN Coated

YG-1 M1700Q Q HSS-Powder Metal MULTI-1 Drill Stub Length TIALN Coated

Part Number: YG1M1700Q

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1154838
Vendor: Sussex Tool and Supply
$36.75
The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.3750 9.52MM - 3/8
Cutter Type HSS/Cobalt Drill
Overall Length 3.5000 88.90MM
Multi Spindle Yes
Machine Side (Toolpost) CYLINDRICAL0.3750
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, it is still wear-resistant and has a high hot hardness., but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however
Type of Tool Drill
Machine Side (Toolpost) Connection Type Cylindrical
Included Angle 135°
Flutes Or Inserts 2
Shipping State ILLINOIS
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Mach Side Connection Size 0.3750 9.53MM - 3/8
Coating TiAlN
Tool Diameter 0.3320 8.43MM - Q
Cut Diameter Min 0.3320 8.43MM - Q
Coolant Thru Non Coolant
Drill Length Type Jobber
Drill Type Stub Powder Metal
Made In USA No
Flute Length 1.6880 42.88MM
