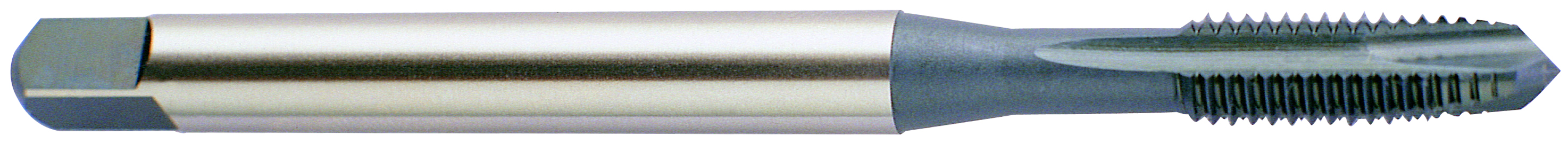

Picture of YG-1 M1603 9/16-12.00TPI Cut Spiral Point Plug 4P-5P P-HSS TiN Pulley Long

YG-1 M1603 9/16-12.00TPI Cut Spiral Point Plug 4P-5P P-HSS TiN Pulley Long

Part Number: YG-M1603

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1163711
Vendor: Sussex Tool and Supply
$81.50
YG-1 M1603 9/16"x12.00TPI Cut Spiral Point Plug 4P-5P P-HSS TiN H3/GH3 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat P-HSS
Machine Side Connection Type Tap Collet
Cut Rating <30HRC Steel, Stainless Steel
Coating TIN
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 12.00TPI
Thread Type NC/UNC
Thread Size 9/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/6"
Tap Drill Range 0.4756 12.08MM - 0.4972 12.63MM
Tap Square 0.3220
Tap Chamfer 4P-5P
