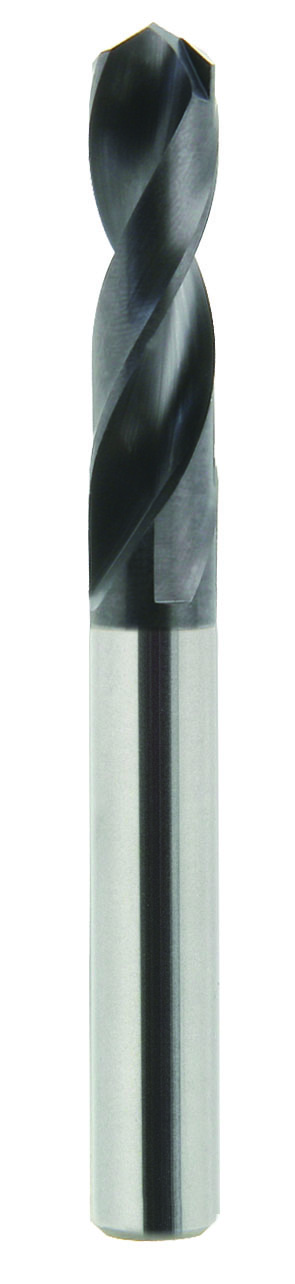

Picture of YG-1 M15010 5/32 HSS-Powder Metal MULTI-1 Drill Stub Length TIALN Coated

YG-1 M15010 5/32 HSS-Powder Metal MULTI-1 Drill Stub Length TIALN Coated

Part Number: YG1M15010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1154759
Vendor: Sussex Tool and Supply
$17.26
The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type HSS/Cobalt Drill
Made In USA No
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Machine Side (Toolpost) CYLINDRICAL0.1875
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.1250 53.98MM
Shank Or Pilot Diameter 0.1875 4.76MM - 3/16
Coolant Thru Non Coolant
Coating TiAlN
Mach Side Connection Size 0.1875 4.76MM - 3/16
Tool Diameter 0.1563 3.97MM - 5/32
Flutes Or Inserts 2
Type of Tool Drill
Included Angle 135°
Flute Length 0.8130 20.65MM
Cut Diameter Min 0.1563 3.97MM - 5/32
Drill Type Stub Powder Metal
Multi Spindle Yes
Drill Length Type Jobber
