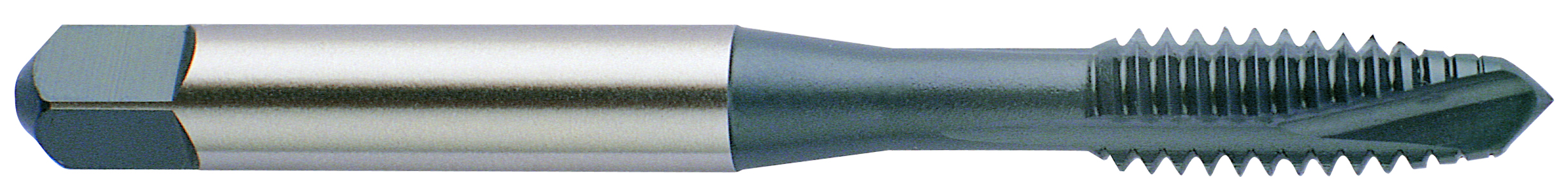

Picture of YG-1 L8435 M10-1.25mm Cut Spiral Point Plug 4P-5P HSSE-V TiCN

YG-1 L8435 M10-1.25mm Cut Spiral Point Plug 4P-5P HSSE-V TiCN

Part Number: YG-L8435
Looking for alternatives…
Find a drill for this tap M10 × 1.25MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1163676
Vendor: Sussex Tool and Supply
$20.79

Description

YG-1 L8435 M10x1.25MM Cut Spiral Point Plug 4P-5P HSSE-V TiCN D5 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 2.9370 74.60MM
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Thread Pitch 1.25MM
Thread Size M10
Tap Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Tap Square 0.2860
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
