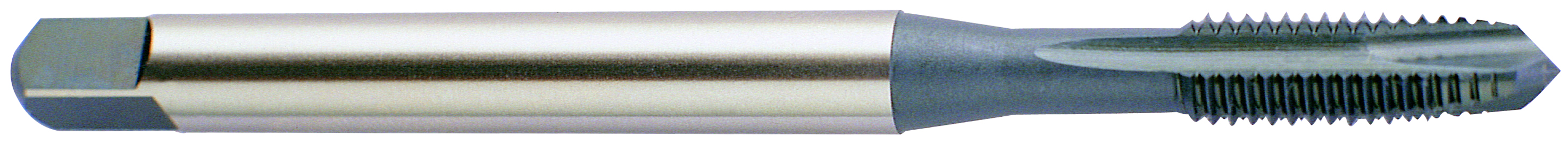

Picture of YG-1 L4703 3/4-10.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

YG-1 L4703 3/4-10.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

Part Number: YG-L4703
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1163611
Vendor: Sussex Tool and Supply
$61.26

Description

YG-1 L4703 3/4"x10.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN H3/GH3 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 4.9210 124.99MM
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 3
Thread Pitch 10.00TPI
Thread Size 3/4"
Tap Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Square 0.4420
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Coating TIN
Standards & Identification
Dimension Standard DINSI
