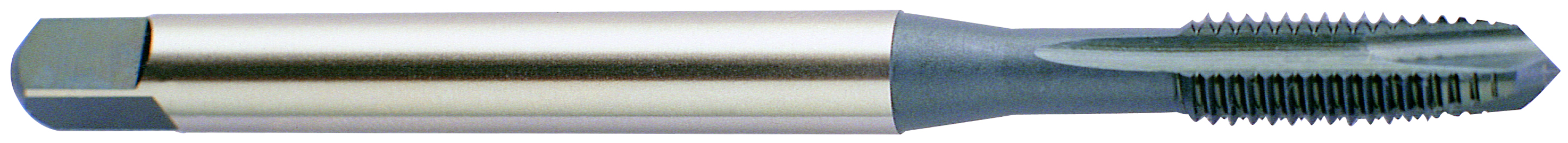

Picture of YG-1 L4202 No.5-40.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

YG-1 L4202 No.5-40.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

Part Number: YG-L4202

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1163583
Vendor: Sussex Tool and Supply
$12.73
YG-1 L4202 No.5x40.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN H3/GH3 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating <25HRC Steel, Stainless Steel
Coating TIN
Overall Length 2.2050 56.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 40.00TPI
Thread Type NC/UNC
Thread Size No.5
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Tap Square 0.1100
Tap Chamfer 4P-5P
