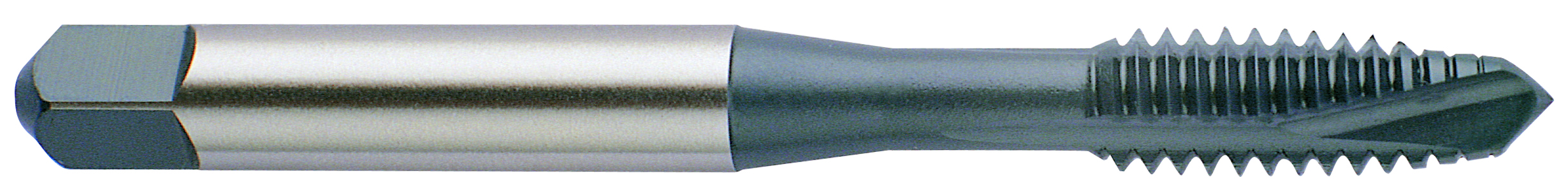

Picture of YG-1 L0503 3/8-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

YG-1 L0503 3/8-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

Part Number: YG-L0503

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1163479
Vendor: Sussex Tool and Supply
$13.77
YG-1 L0503 3/8"x24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN H3/GH3 NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating <25HRC Steel, Stainless Steel
Coating TIN
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Thread Size 3/8"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tap Square 0.2860
Tap Chamfer 4P-5P
