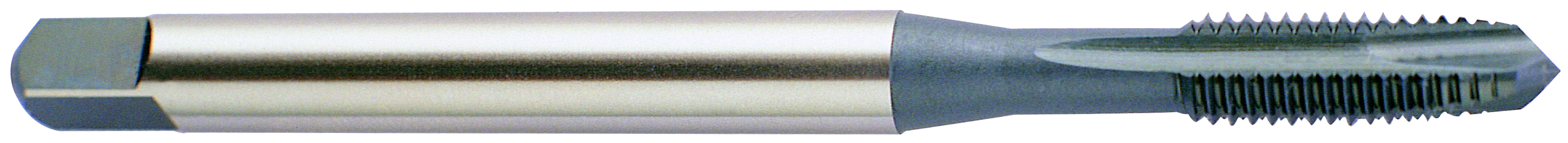

Picture of YG-1 K3365 M8-1.25mm Cut Spiral Point Plug 4P-5P HSSE-V3 Steam Oxide

YG-1 K3365 M8-1.25mm Cut Spiral Point Plug 4P-5P HSSE-V3 Steam Oxide

Part Number: YG-K3365

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1163351
Vendor: Sussex Tool and Supply
$13.19
YG-1 K3365 M8x1.25MM Cut Spiral Point Plug 4P-5P HSSE-V3 Steam Oxide D5 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating <30HRC Steel, Stainless Steel
Coating Steam Oxide
Overall Length 3.5430 89.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.25MM
Thread Type METRIC
Thread Size M8
Thread Limit D5
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2380
Tap Chamfer 4P-5P
