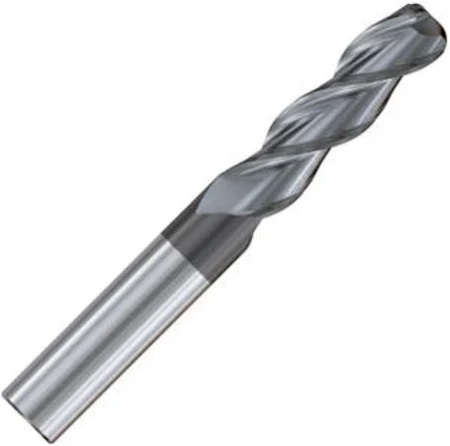

Picture of YG-1 JAG97957 Dia 7/16 SH 0.4375 LOC 2.00 OAL4.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0900 2.29mm Alu-Power HPC

YG-1 JAG97957 Dia 7/16 SH 0.4375 LOC 2.00 OAL4.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0900 2.29mm Alu-Power HPC

Part Number: YG-JAG97957

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1209320
Vendor: Sussex Tool and Supply
$90.00
YG-1 Standard Helix End Mill Carbide TiCN Corner Radius 0.0900 2.29MM Standard Flute Flutes 3 Single End Alu-Power HPC Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating TICN
Mach Side Connection Size 0.4375 11.11MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 3
Tool Dia 0.4375 11.11MM - 7/16
Length Type LONG
Performance Rating High Performance
Length Of Cut 2.0000 50.80MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0900 2.29MM
Inch/Metric Inch
Helix Angle 37
Center Cutting Center Cutting
