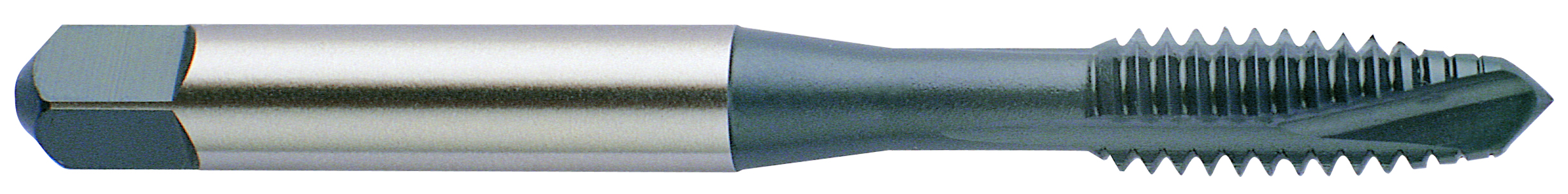

Picture of YG-1 J2463 5/16-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 J2463 5/16-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Part Number: YG-J2463
Looking for alternatives…
Find a drill for this tap 5/16" × 24.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1162921
Vendor: Sussex Tool and Supply
$22.93

Description

YG-1 J2463 5/16"x24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick H3/GH3 NF/UNF/UNEF Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 2.7200 69.09MM
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Thread Pitch 24.00TPI
Thread Size 5/16"
Tap Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Square 0.2380
Performance & Capacity
Cut Rating <30HRC Steel, Stainless Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Coating Hardslick
Standards & Identification
Dimension Standard ANSI/ANSI
