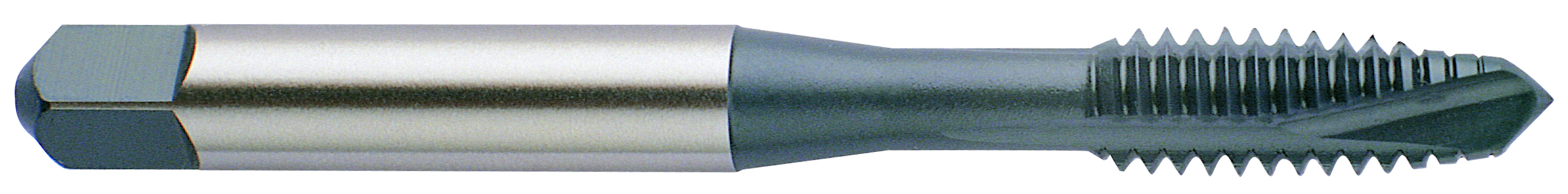

Picture of YG-1 I5603 9/16-12.00TPI Cut Spiral Point Plug 4P-5P P-HSS TiCN

YG-1 I5603 9/16-12.00TPI Cut Spiral Point Plug 4P-5P P-HSS TiCN

Part Number: YG-I5603

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1162661
Vendor: Sussex Tool and Supply
$73.77
YG-1 I5603 9/16"x12.00TPI Cut Spiral Point Plug 4P-5P P-HSS TiCN H3/GH3 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat P-HSS
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating TICN
Overall Length 3.5900 91.19MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 12.00TPI
Thread Type NC/UNC
Thread Size 9/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4756 12.08MM - 0.4972 12.63MM
Tap Square 0.3220
Tap Chamfer 4P-5P
