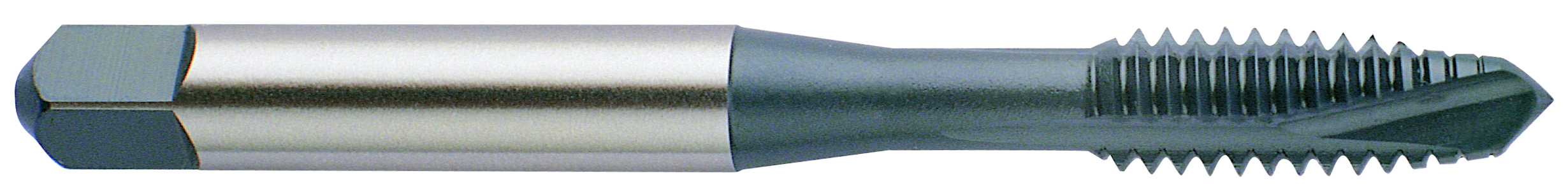

Picture of YG-1 I2784 1-8.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 TiN

YG-1 I2784 1-8.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 TiN

Part Number: YG-I2784

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1162557
Vendor: Sussex Tool and Supply
$126.53
YG-1 I2784 1"x8.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 TiN H4/GH4 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating <30HRC Steel, Stainless Steel
Coating TIN
Overall Length 5.1250 130.18MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 8.00TPI
Thread Type NC/UNC
Thread Size 1"
Thread Limit H4/GH4
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.8701 22.10MM - 0.9024 22.92MM
Tap Square 0.6000
Tap Chamfer 4P-5P
