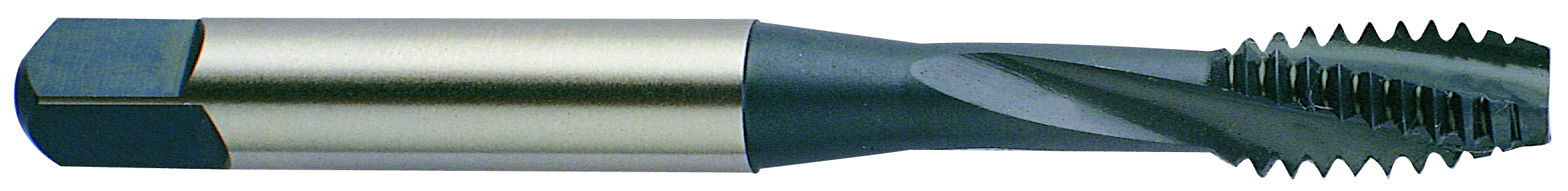

Picture of YG-1 H9703 3/4-10.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS TiN

YG-1 H9703 3/4-10.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS TiN

Part Number: YG-H9703

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1162398
Vendor: Sussex Tool and Supply
$94.28
YG-1 H9703 3/4"x10.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS TiN H3/GH3 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat P-HSS
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating TIN
Overall Length 4.2500 107.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 10.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Square 0.4420
Tap Chamfer 2.0P-3.0P
