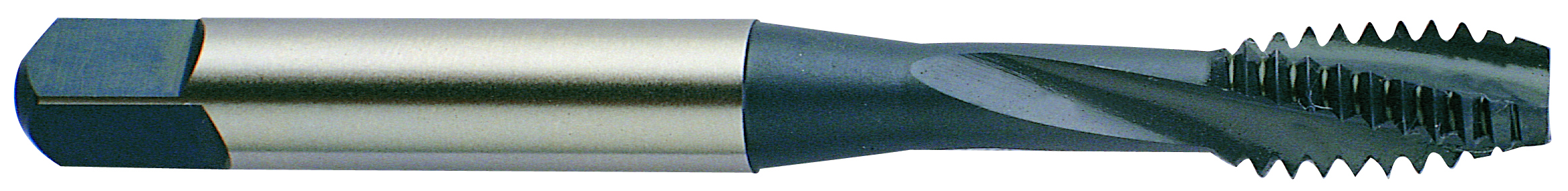

Picture of YG-1 H9623 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS TiN

YG-1 H9623 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS TiN

Part Number: YG-H9623

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1162392
Vendor: Sussex Tool and Supply
$70.90
YG-1 H9623 9/16"x18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS TiN H3/GH3 NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat P-HSS
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating TIN
Overall Length 3.5900 91.19MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 9/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Tap Square 0.3220
Tap Chamfer 2.0P-3.0P
