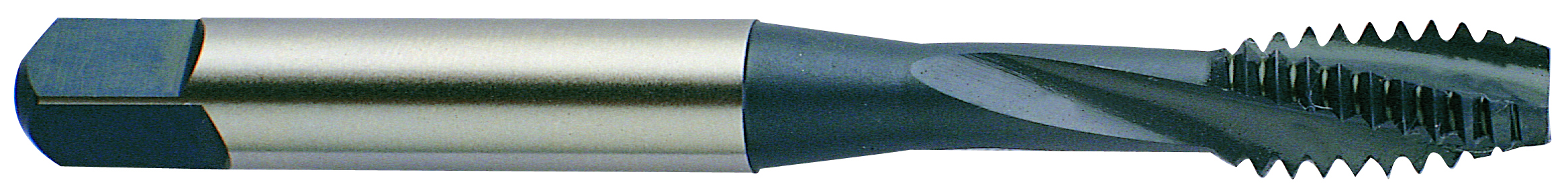

Picture of YG-1 H6725 3/4-16.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS Uncoated

YG-1 H6725 3/4-16.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS Uncoated

Part Number: YG-H6725

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1162321
Vendor: Sussex Tool and Supply
$94.87
YG-1 H6725 3/4"x16.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS Uncoated H5/GH5 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat P-HSS
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Overall Length 4.2500 107.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 16.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit H5/GH5
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Tap Square 0.4420
Tap Chamfer 2.0P-3.0P
