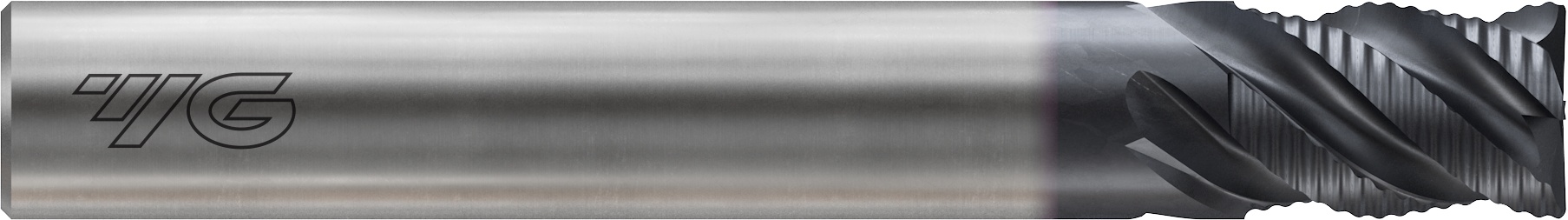

Picture of YG-1 G9D75200 Dia 20mm SH 0.7874 LOC 1.1811 OAL4.0945 End Mill Carbide TiAlN Single End Corner Radius0.0394 1.00mm X-SPEED End Mills

YG-1 G9D75200 Dia 20mm SH 0.7874 LOC 1.1811 OAL4.0945 End Mill Carbide TiAlN Single End Corner Radius0.0394 1.00mm X-SPEED End Mills

Part Number: YG-G9D75200
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1208333
Vendor: Sussex Tool and Supply
$387.04

Description

YG-1 End Mill Carbide TiAlN Corner Radius 0.0394 1.00MM Flutes 5 Single End X-SPEED End Mills Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Stub
End Of Tool Shape CORNER RADIUS
Cutter Style Bull Nose Rougher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0945 104.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 5
Tool Dia 0.7874 20.00MM
Length Of Cut 1.1811 30.00MM
Geometry & Angles
Corner Radius 0.0394 1.00MM
Helix Angle Variable
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
