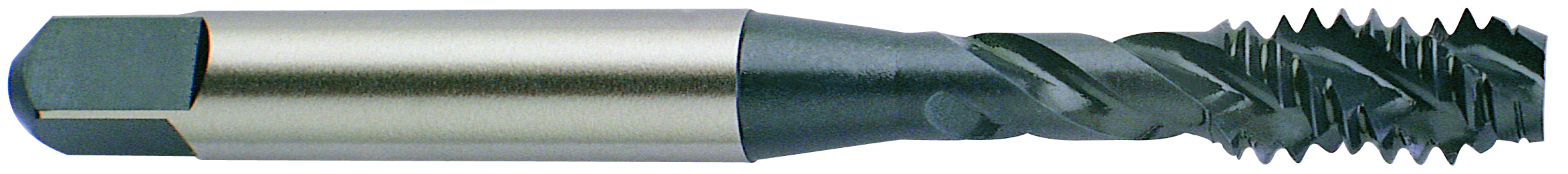

Picture of YG-1 G5284 M5-0.80mm Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V TiCN

YG-1 G5284 M5-0.80mm Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V TiCN

Part Number: YG-G5284

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1162222
Vendor: Sussex Tool and Supply
$13.84
YG-1 G5284 M5x0.80MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V TiCN D4 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating <25HRC Steel, Stainless Steel
Coating TICN
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 0.80MM
Thread Type METRIC
Thread Size M5
Thread Limit D4
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1520
Tap Chamfer 1.5P-2.0P
