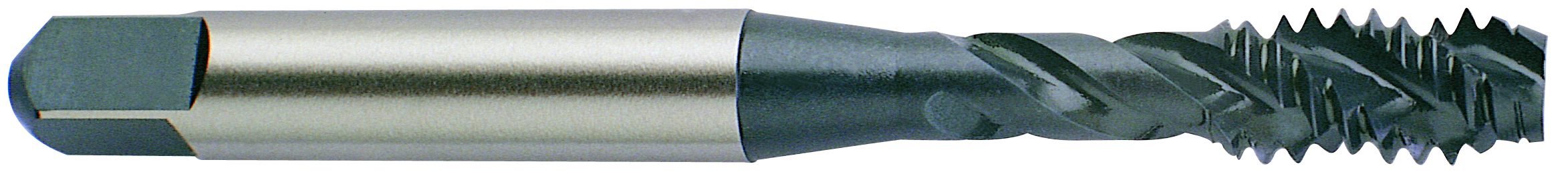

Picture of YG-1 F8463 5/16-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V TiN

YG-1 F8463 5/16-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V TiN

Part Number: YG-F8463

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1162050
Vendor: Sussex Tool and Supply
$13.67
YG-1 F8463 5/16"x24.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V TiN H3/GH3 NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating <25HRC Steel, Stainless Steel
Coating TIN
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Thread Size 5/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Square 0.2380
Tap Chamfer 1.5P-2.0P
