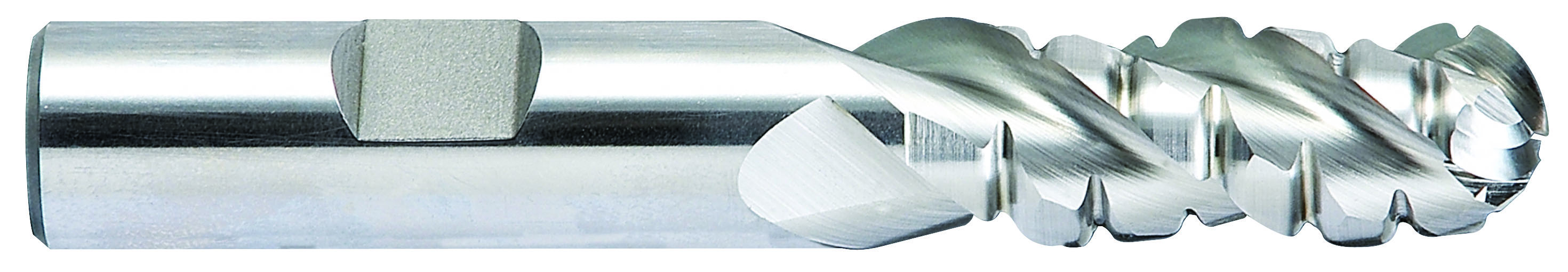

Picture of YG-1 EP12040C Dia 5/8 SH 0.6250 LOC 1.6250 OAL3.7500 End Mill Roughing Flute Standard Helix Powder Metal TiCN Single End Ball NoseBall ASP

YG-1 EP12040C Dia 5/8 SH 0.6250 LOC 1.6250 OAL3.7500 End Mill Roughing Flute Standard Helix Powder Metal TiCN Single End Ball NoseBall ASP

Part Number: YG-EP12040C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1211586
Vendor: Sussex Tool and Supply
$102.73
YG-1 Standard Helix End Mill Powder Metal TiCN Ball Nose Ball Roughing Flute Flutes 3 Single End ASP Powder Metal Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Powder Metal
Cutting Edge Mat Powder Metal
Machine Side Connection Type Weldon
Cut Rating Graphite, Aluminum, Plastic
Coating TICN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.7500 95.25MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Dia 0.6250 15.88MM - 5/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.6250 41.28MM
End Of Tool Shape Ball Nose
Cutter Style Powder Metal Ball Rougher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 42
Center Cutting Center Cutting
