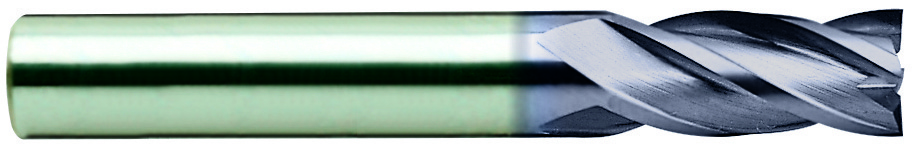

Picture of YG-1 EH540095 Dia 9.50mm SH 0.3740 LOC 0.8661 OAL2.834 End Mill Standard Flute Standard Helix Carbide TiAlN Single End Square Sharp Carbide EndMillS

YG-1 EH540095 Dia 9.50mm SH 0.3740 LOC 0.8661 OAL2.834 End Mill Standard Flute Standard Helix Carbide TiAlN Single End Square Sharp Carbide EndMillS

Part Number: YG-EH540095
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1215236
Vendor: Sussex Tool and Supply
$66.77

Description

YG-1 Standard Helix End Mill Carbide TiAlN Square Sharp Standard Flute Flutes 4 Single End CARBIDE ENDMILLS Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.8346 72.00MM
Shank/Pilot Dia 0.3740 9.50MM
Flutes/Inserts 4
Tool Dia 0.3740 9.50MM
Length Of Cut 0.8660 22.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
