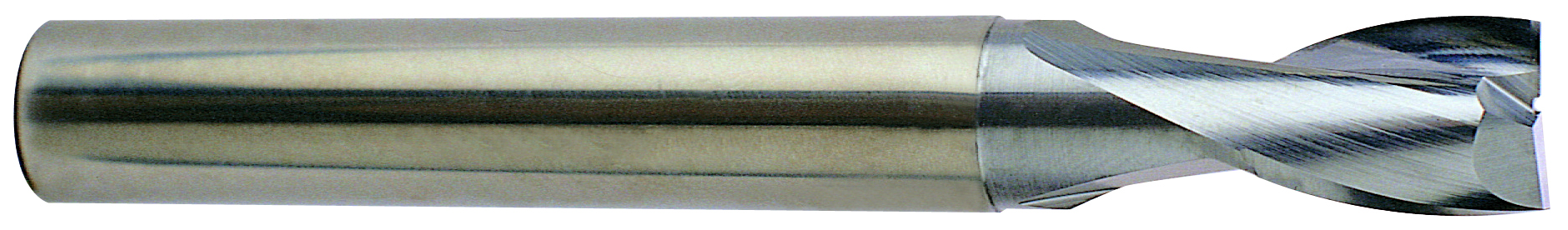

Picture of YG-1 EG930160 Dia 16mm SH 0.6299 LOC 0.7874 OAL3.5433 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0079 0.20mm Alu-Power End Mill

YG-1 EG930160 Dia 16mm SH 0.6299 LOC 0.7874 OAL3.5433 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0079 0.20mm Alu-Power End Mill

Part Number: YG-EG930160

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1217021
Vendor: Sussex Tool and Supply
$131.07
YG-1 Standard Helix End Mill Carbide TiCN Corner Radius 0.0079 0.20MM Standard Flute Flutes 2 Single End Alu-Power End Mill Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating TICN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 3.5433 90.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.6299 16.00MM
Length Type Stub / With Neck
Performance Rating High Performance
Length Of Cut 0.7874 20.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0079 0.20MM
Inch/Metric Metric
Helix Angle 25
Center Cutting Center Cutting
Neck Length 1.5748 40.00MM
