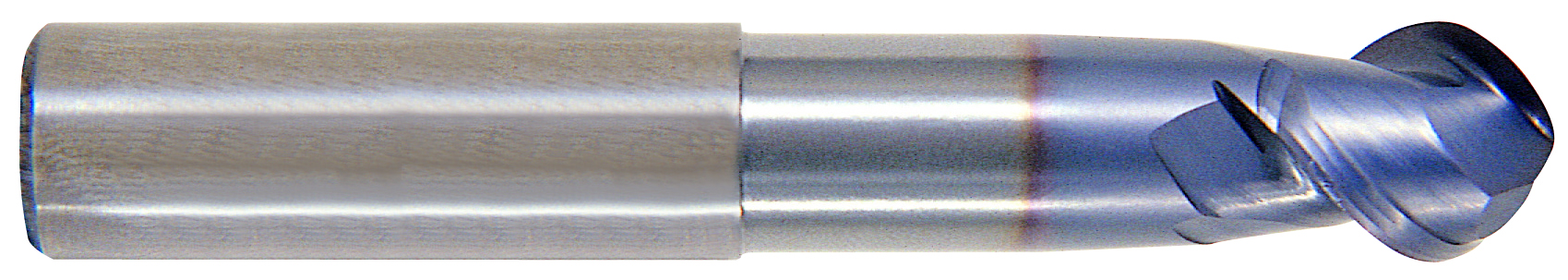

Picture of YG-1 EG910200 Dia 20mm SH 0.7874 LOC 0.6693 OAL3.9370 End Mill Standard Flute High Helix Carbide TiCN Single End Ball NoseBall Carbide EndMillS

YG-1 EG910200 Dia 20mm SH 0.7874 LOC 0.6693 OAL3.9370 End Mill Standard Flute High Helix Carbide TiCN Single End Ball NoseBall Carbide EndMillS

Part Number: YG-EG910200
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$335.37
SKU: 1217052

Description

YG-1 High Helix End Mill Carbide TiCN Ball Nose Ball Standard Flute Flutes 2 Single End CARBIDE ENDMILLS Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Stub / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7874 20.00MM
Length Of Cut 0.6693 17.00MM
Neck Length 1.9685 50.00MM
Geometry & Angles
Helix Angle 50
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
