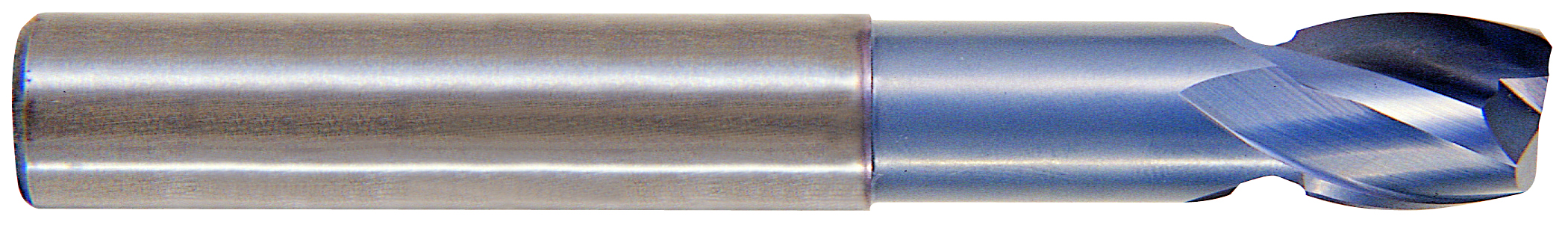

Picture of YG-1 EG909080 Dia 8mm SH 0.3150 LOC 0.3937 OAL2.7559 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0236 0.60mm Alu-Power End Mill

YG-1 EG909080 Dia 8mm SH 0.3150 LOC 0.3937 OAL2.7559 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0236 0.60mm Alu-Power End Mill

Part Number: YG-EG909080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1216553
Vendor: Sussex Tool and Supply
$35.36
YG-1 Standard Helix End Mill Carbide TiCN Corner Radius 0.0236 0.60MM Standard Flute Flutes 2 Single End Alu-Power End Mill Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating TICN
Mach Side Connection Size 0.3150 8.00MM
Overall Length 2.7560 70.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Length Type Stub / With Neck
Performance Rating High Performance
Length Of Cut 0.3937 10.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0236 0.60MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Neck Length 1.1811 30.00MM
