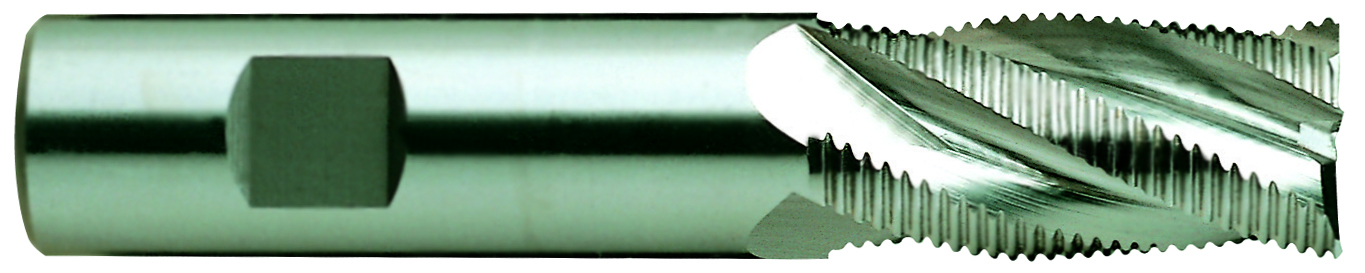

Picture of YG-1 E9990108TF Dia 1-1/8 SH 1.00 LOC 2.00 OAL4.50 End Mill Powder Metal TiAlN Single End Square Sharp Tank-Power End Mill

YG-1 E9990108TF Dia 1-1/8 SH 1.00 LOC 2.00 OAL4.50 End Mill Powder Metal TiAlN Single End Square Sharp Tank-Power End Mill

Part Number: YG-E9990108TF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1215034
Vendor: Sussex Tool and Supply
$183.56
The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.0000 25.40MM
Cutter Type Solid End Mill
Length Type STANDARD
Performance Rating High Performance
Center Cutting Center Cutting
Overall Length 4.5000 114.30MM
Machine Side (Toolpost) WELDON1.0000
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, it is still wear-resistant and has a high hot hardness., but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however
Length Of Cut 2.0000 50.80MM
Type of Tool End Mill
End Of Tool Shape Square
Cutter Style Powder Metal Rougher
Inch Or Metric Inch
Machine Side (Toolpost) Connection Type Weldon
Flutes Or Inserts 6
Shipping State ILLINOIS
Family Group Tank-Power End Mill
Single Or Double End Single End
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Mach Side Connection Size 1.0000 25.40MM
Coating TiAlN
Tool Diameter 1.1250 28.58MM - 1-1/8
Coolant Thru Non Coolant
Helix Angle 30°
Made In USA No
