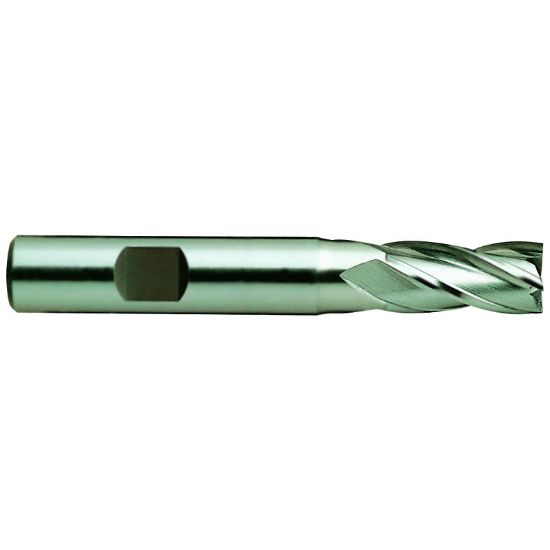

YG-1 E9985008 DIA 1/8 SH 0.3750 LOC 0.3750 OAL2.3125 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Square Sharp Tank-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E9985008
Delivery date: 3-5 days
$21.48
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Material # Material#10, Material#3, Material#17, Material#8, Material#15
Performance Rating High Performance
Additional Key Information 4 Standard Helix
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Uncategorized
Made In USA No
Dimensional Specifications
Single/Double End Single End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 2.3125 58.74MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Weldon
Length Of Cut 0.3750 9.53MM
Inch/Metric Inch
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side WELDON0.3750
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Tool Material Powder Metal
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
