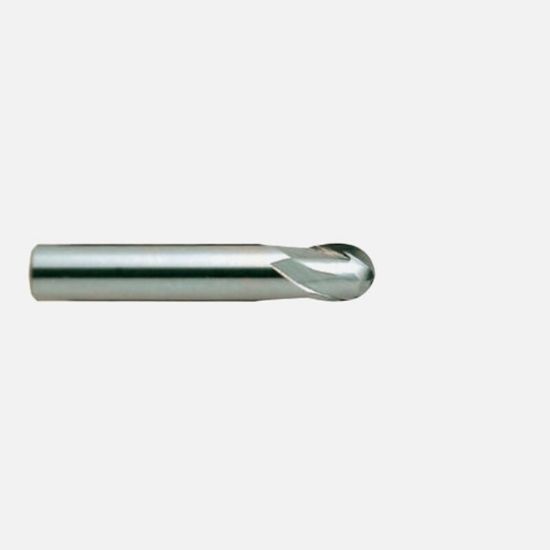

YG-1 E5249032 DIA 1/2" SH 0.50 LOC 1.00 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall Generic

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5249032
Delivery date: 3-5 days
$47.97
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#17, Material#3, Material#8, Material#15
Shipping State Illinois
Additional Key Information 4 High Helix
Application Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling, Side Milling
Performance Rating General Performance
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Additional Key Information 2 Ball Nose
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
End Of Tool Shape Ball Nose
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.5000 12.70MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Machine Side CYLINDRICAL0.5000
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Overall Len 3.0000 76.20MM
Length Of Cut 1.0000 25.40MM
Helix Angle 30°
Flutes/Inserts 2
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
