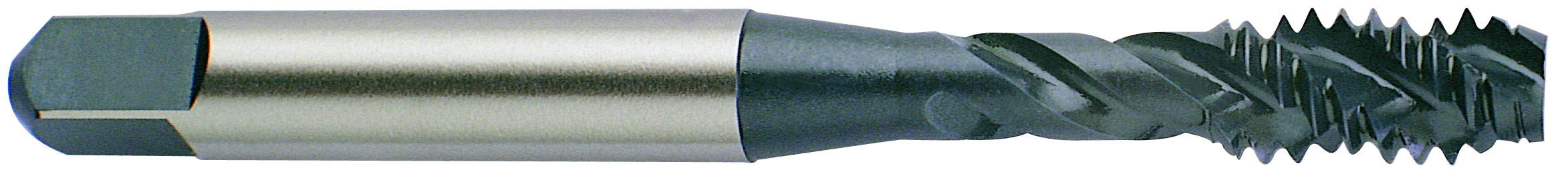

Picture of YG-1 E0965 1-1/2-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

YG-1 E0965 1-1/2-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

Part Number: YG-E0965

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1161734
Vendor: Sussex Tool and Supply
$492.37
Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.
Products specifications
Attribute name Attribute value
Tap Drill Range 1.4134 35.90MM - 1.4350 36.45MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 1.2330 31.32MM
Thread Limit H5/GH5
Cutter Type Taping
Tap Square 0.9250
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 6.3750 161.93MM
Machine Side (Toolpost) TAP0.925x1.233
Cutting Edge Definition which increase wear resistance and hot hardness., Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 4
Shipping State ILLINOIS
Family Group Steel 38Rc Tap
Cutting Edge Material HSSE-V3
Tool Material Steel
Coating Hardslick
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type NF/UNF/UNEF
Made In USA No
Thread Size 1-1/2"
Thread Pitch 12.00TPI
Tap Chamfer 2.0P-3.0P
