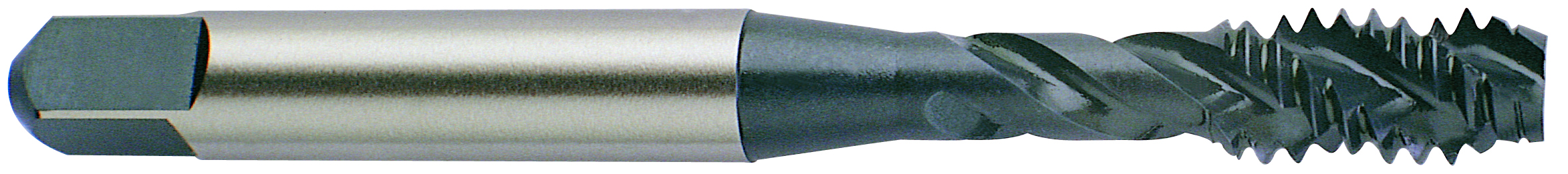

Picture of YG-1 E0885 1-1/4-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

YG-1 E0885 1-1/4-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

Part Number: YG-E0885

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1161726
Vendor: Sussex Tool and Supply
$295.64
YG-1 E0885 1-1/4"x12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick H5/GH5 NF/UNF/UNEF Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating Hardslick
Overall Length 5.7500 146.05MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0210 25.93MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 12.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1-1/4"
Thread Limit H5/GH5
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 1.1634 29.55MM - 1.1850 30.10MM
Tap Square 0.7660
Tap Chamfer 2.0P-3.0P
