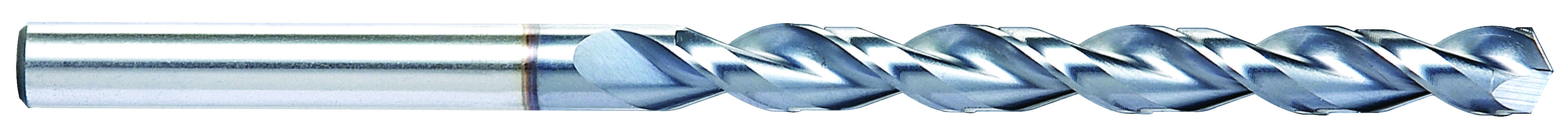

Picture of YG-1 DX517031 31/64 HSSCo5 PARABOLIC Flute Taper Length Straight Shank Drill TICN Coated

YG-1 DX517031 31/64 HSSCo5 PARABOLIC Flute Taper Length Straight Shank Drill TICN Coated

Part Number: YG1DX517031

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1154177
Vendor: Sussex Tool and Supply
$116.61
This product has a minimum quantity of 5
YG-1 DX517031 Drills 31/64 HSSCo5 PARABOLIC FLUTE TAPER LENGTH STRAIGHT SHANK DRILL TICN COATED 130° Cobalt Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type HSS/Cobalt Drill
Tool Material Cobalt
Cutting Edge Mat Cobalt
Machine Side Connection Type Cylindrical
Cut Rating Graphite, <25HRC Steel, Grey Iron, Stainless Steel
Coating TICN
Mach Side Connection Size 0.4844 12.30MM
Overall Length 7.7500 196.85MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4844 12.30MM - 31/64
Flutes/Inserts 2
Tool Dia 0.4844 12.30MM - 31/64
Type Of Tool Drill
Included Angle 130°
Flute Length 4.7500 120.65MM
Cut Dia Min 0.4844 12.30MM - 31/64
Drill Type Taper Length Cobalt
Drill Length Type Taper
