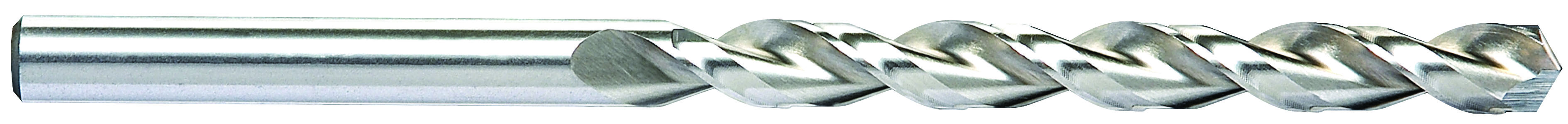

Picture of YG-1 DL517009 9/64 HSSCo5 PARABOLIC Flute Taper Length Straight Shank Drill

YG-1 DL517009 9/64 HSSCo5 PARABOLIC Flute Taper Length Straight Shank Drill

Part Number: YG1DL517009
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$13.40
This product has a minimum quantity of 10
SKU: 1154127

Description

YG-1 DL517009 Drills 9/64 HSSCo5 PARABOLIC FLUTE TAPER LENGTH STRAIGHT SHANK DRILL 130° Cobalt
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type HSS/Cobalt Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Type Taper Length Cobalt
Drill Length Type Taper
Dimensions & Sizing
Overall Length 5.3750 136.53MM
Shank/Pilot Dia 0.1406 3.57MM - 9/64 - #28
Flutes/Inserts 2
Tool Dia 0.1406 3.57MM - 9/64 - #28
Flute Length 3.0000 76.20MM
Geometry & Angles
Included Angle 130°
Performance & Capacity
Cut Rating Graphite, <25HRC Steel, Gray Iron, Stainless Steel
Cut Dia Min 0.1406 3.57MM - 9/64 - #28
Materials & Finish
Tool Material Cobalt
Cutting Edge Mat Cobalt
