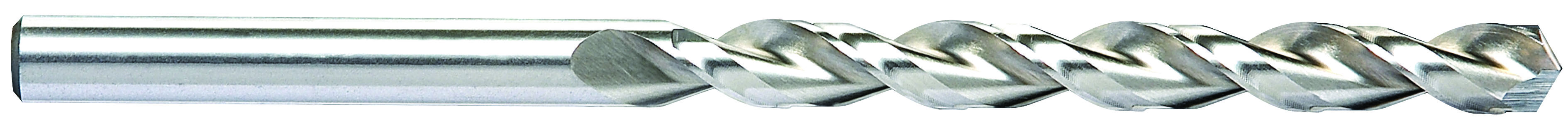

Picture of YG-1 DL517007 7/64 HSSCo5 PARABOLIC Flute Taper Length Straight Shank Drill

YG-1 DL517007 7/64 HSSCo5 PARABOLIC Flute Taper Length Straight Shank Drill

Part Number: YG1DL517007
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$18.09
This product has a minimum quantity of 10
SKU: 1154125

Description

YG-1 DL517007 Drills 7/64 HSSCo5 PARABOLIC FLUTE TAPER LENGTH STRAIGHT SHANK DRILL 130° Cobalt
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type HSS/Cobalt Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Type Taper Length Cobalt
Drill Length Type Taper
Dimensions & Sizing
Overall Length 4.6250 117.48MM
Shank/Pilot Dia 0.1094 2.78MM - 7/64
Flutes/Inserts 2
Tool Dia 0.1094 2.78MM - 7/64
Flute Length 2.5000 63.50MM
Geometry & Angles
Included Angle 130°
Performance & Capacity
Cut Rating Graphite, <25HRC Steel, Gray Iron, Stainless Steel
Cut Dia Min 0.1094 2.78MM - 7/64
Materials & Finish
Tool Material Cobalt
Cutting Edge Mat Cobalt
