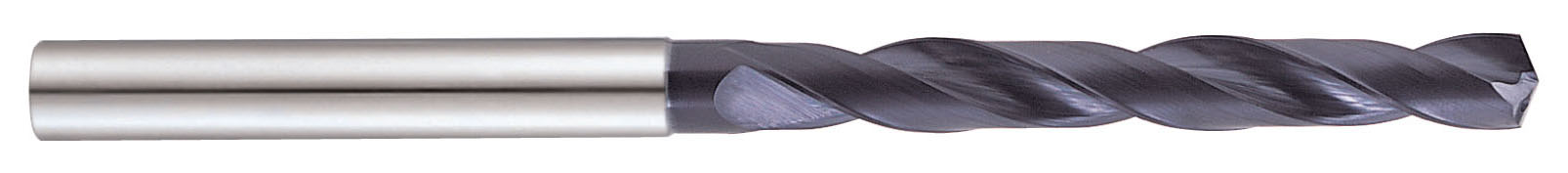

YG-1 DH722030 15/32 Carbide Dream Drill W/O Coolant HOLES (5XD)

Part Number: YG1DH722030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1148763
$153.72
YG-1 DH722030 Carbide Drill 15/32 CARBIDE DREAM DRILL W/O COOLANT HOLES (5XD) Solid TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, <40HRC Steel, Ductile Iron
Coating TiAlN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 6.2180 157.94MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.4688 11.91MM - 15/32
Type Of Tool Drill
Included Angle 140°
Flute Length 3.7810 96.04MM
Cut Dia Min 0.4688 11.91MM - 15/32
Dia Deep 5.0x Dia
