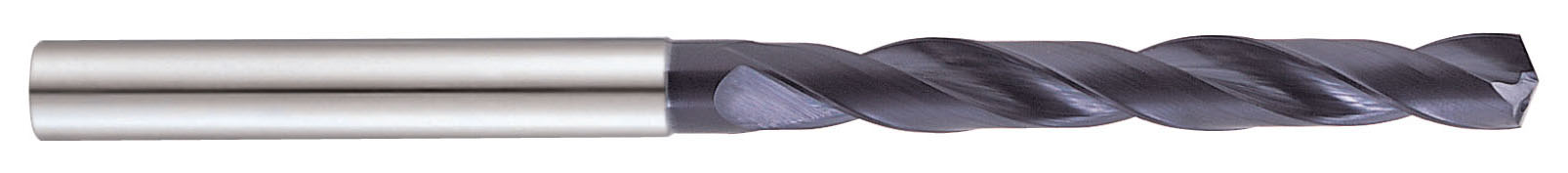

YG-1 DH722028 7/16 Carbide Dream Drill W/O Coolant HOLES (5XD)

Part Number: YG1DH722028

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1148761
$133.25
YG-1 DH722028 Carbide Drill 7/16 CARBIDE DREAM DRILL W/O COOLANT HOLES (5XD) Solid TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, <40HRC Steel, Ductile Iron
Coating TiAlN
Mach Side Connection Size 0.4375 11.11MM
Overall Length 6.2180 157.94MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 2
Tool Dia 0.4375 11.11MM - 7/16
Type Of Tool Drill
Included Angle 140°
Flute Length 3.6250 92.08MM
Cut Dia Min 0.4375 11.11MM - 7/16
Dia Deep 5.0x Dia
