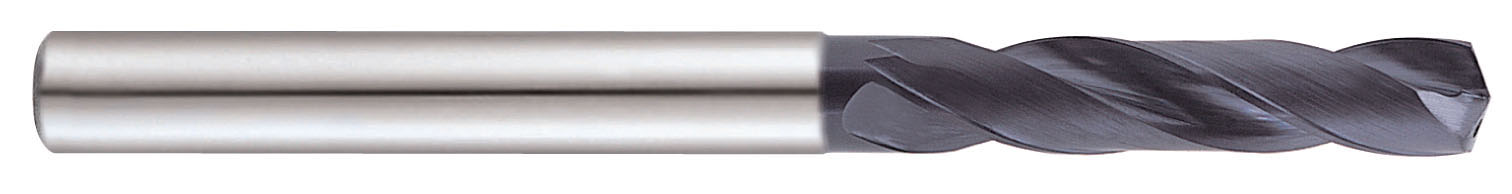

Picture of YG-1 DH711028 7/16 Carbide Dream Drill W/ Coolant HOLES(3XD)

YG-1 DH711028 7/16 Carbide Dream Drill W/ Coolant HOLES(3XD)

Part Number: YG1DH711028
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1147768
Vendor: Sussex Tool and Supply
$228.63

Description

YG-1 DH711028 Carbide Drill 7/16 CARBIDE DREAM DRILL W/ COOLANT HOLES(3XD) Coolant Thru TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.8030 122.00MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 2
Tool Dia 0.4375 11.11MM - 7/16
Flute Length 2.2640 57.51MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min 0.4375 11.11MM - 7/16
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
