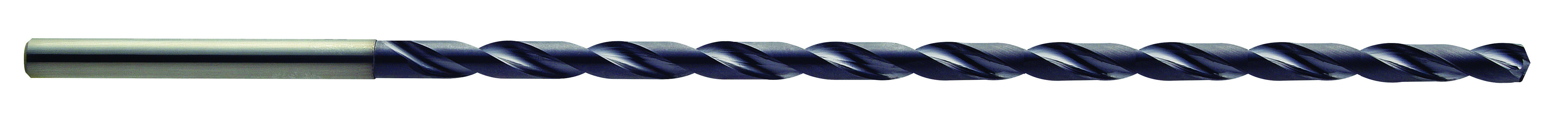

YG-1 DH520090 9.00mm Carbide Drill MQL Type W/ Coolant (20XD)

Part Number: YG1DH520090

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1147722
$357.63
YG-1 DH520090 Deep Hole Over 8Xd 9.00MM CARBIDE DRILL MQL TYPE W/ COOLANT (20XD) Coolant Thru TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TiAlN
Mach Side Connection Size 0.3543 9.00MM
Overall Length 10.4331 265.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3543 9.00MM
Flutes/Inserts 2
Tool Dia 0.3543 9.00MM
Type Of Tool Drill
Included Angle 140°
Flute Length 8.1500 207.01MM
Cut Dia Min 0.3543 9.00MM
Dia Deep 20.0x Dia
Multi Spindle Yes
