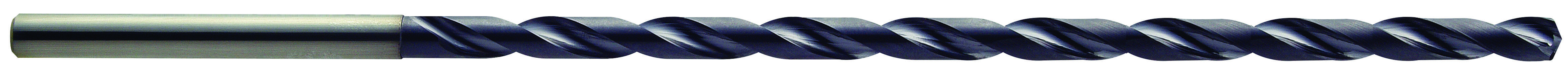

YG-1 DH515127 12.70mm Carbide Drill MQL Type W/ Coolant (15XD)

Part Number: YG1DH515127

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1147646
$706.95
YG-1 DH515127 Deep Hole Over 8Xd 12.70MM CARBIDE DRILL MQL TYPE W/ COOLANT (15XD) Coolant Thru TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TiAlN
Mach Side Connection Size 0.5118 13.00MM
Overall Length 11.8110 300.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5118 13.00MM
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool Drill
Included Angle 140°
Flute Length 9.2130 234.01MM
Cut Dia Min 0.5000 12.70MM - 1/2
Dia Deep 15.0x Dia
Multi Spindle Yes
