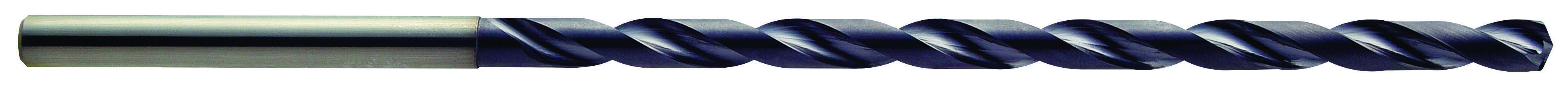

YG-1 DH510107 10.70mm Carbide Drill MQL Type W/ Coolant (10XD)

Part Number: YG1DH510107

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1147497
$272.73
YG-1 DH510107 Deep Hole Over 8Xd 10.70MM CARBIDE DRILL MQL TYPE W/ COOLANT (10XD) Coolant Thru TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TiAlN
Mach Side Connection Size 0.4331 11.00MM
Overall Length 8.1496 207.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4331 11.00MM
Flutes/Inserts 2
Tool Dia 0.4213 10.70MM
Type Of Tool Drill
Included Angle 140°
Flute Length 5.6300 143.00MM
Cut Dia Min 0.4213 10.70MM
Dia Deep 10.0x Dia
Multi Spindle Yes
